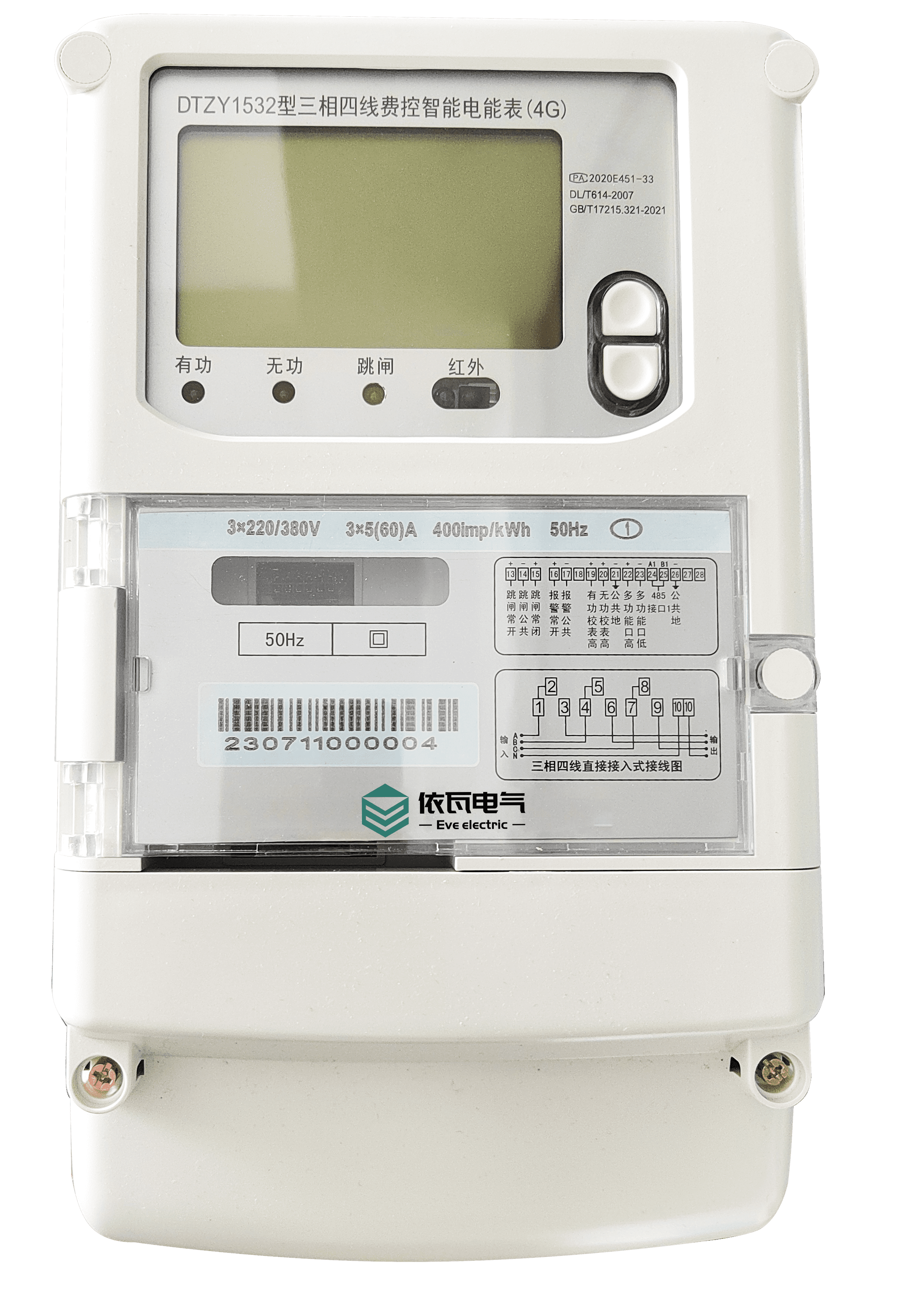

DTZY/DSSF1532 Three-phase electronic multi-rate energy meter

Main functions and features

1. With active energy metering, long-term work does not need to be adjusted, and time-sharing measurement of positive and reverse active energy.
2. Number of time zones per year：The maximum time zone in which the energy meter can operate. There are 2 sets of time zone tables in this table, and each set of time zone tables can be set for up to 14 time periods.
3. Number of daily periods：The maximum number of daily periods that an energy meter can run per day. This table has 2 sets of time tables, and each set of time tables can be set up to 14 time periods.
4. Programmable 4 rates(Sharp, peak, flat, valley), 14 periods, 8 daily timetables.
5. Programming recording function. The electric energy meter can record the total number of programming times, and can record the time of the programming operation carried out after the last 1~10 programming button presses, the last 10 programming items after the programming operator and programming button are pressed.
6. Event Clearance Recording Function, Maximum Demand Clearance Recording Function, Power Failure Recording Function.
7. With infrared and RS485 communication interfaces, it can realize remote centralized meter reading and monitoring.
8. The meter has the functions of 2 sets of time zone table and 2 sets of daily time table functions, when the power is out, the data is automatically saved, and the data is automatically restored after the power is turned on.

Main technical parameters

EXTERIOR DIMENSION DRAWING
