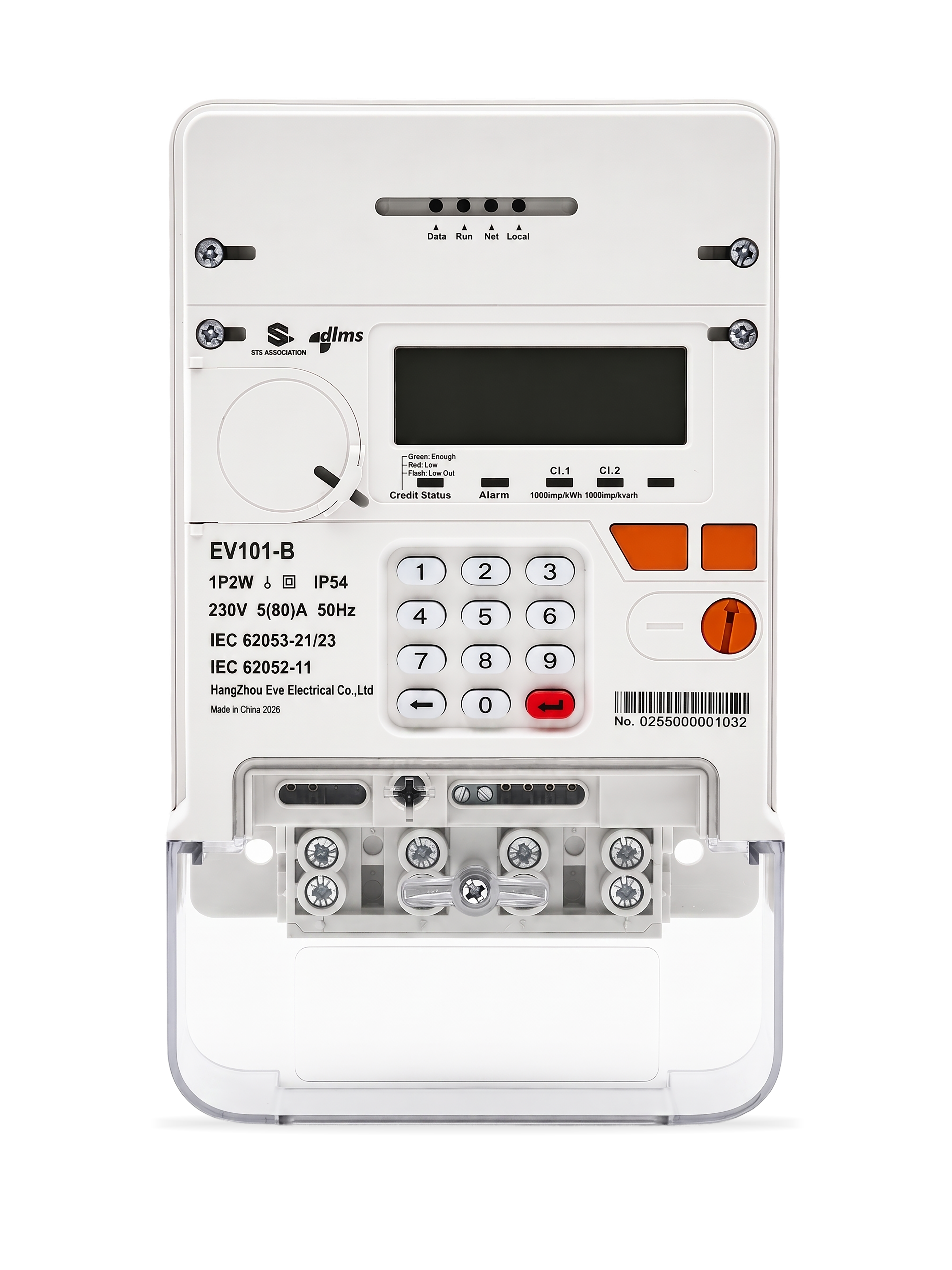

Single phase prepaid meter EV101-B with modular design and flexible extensible property, which is designed according to the latest STS standards. It can meet a variety of intelligent application requirement.
Highlights：
01 Support variety of communication interface,such as HPLC,G3PLC,cellular module 2G/3G/4G
02 Hot plug-play modular design
03 Multiple I/O extensible property
04 Support DLMS/COSEM protocol，easy to integrate into third part system
05 Same platform as AMI meter，Easier to maintain
Specification:
|
Accuracy |
Active |
Class 1 (IEC) |
|
Reactive(optional) |
Class 2 (IEC) |
|
|
Nominal Voltage |
1 phase 2 wire |
220V...240V (-20%...20%) |
|
Current Range |
lb/ Iref |
5A, 10A |
|
Imax |
80A,100A |
|
|
Starting Current |
According to IEC |
0.4%lb |
|
Frequrncy |
50 / 60Hz, +/-5% |
|
|
Protection Degree |
IP 54 |
|
|
Communication |
Built-in |
Optical /RS485 |
|
Communication Modules (optional) |
PLC/RF/cellular module |
|
|
Dimension |
(H x W x D) |
200mm* 124mm*58mm |
