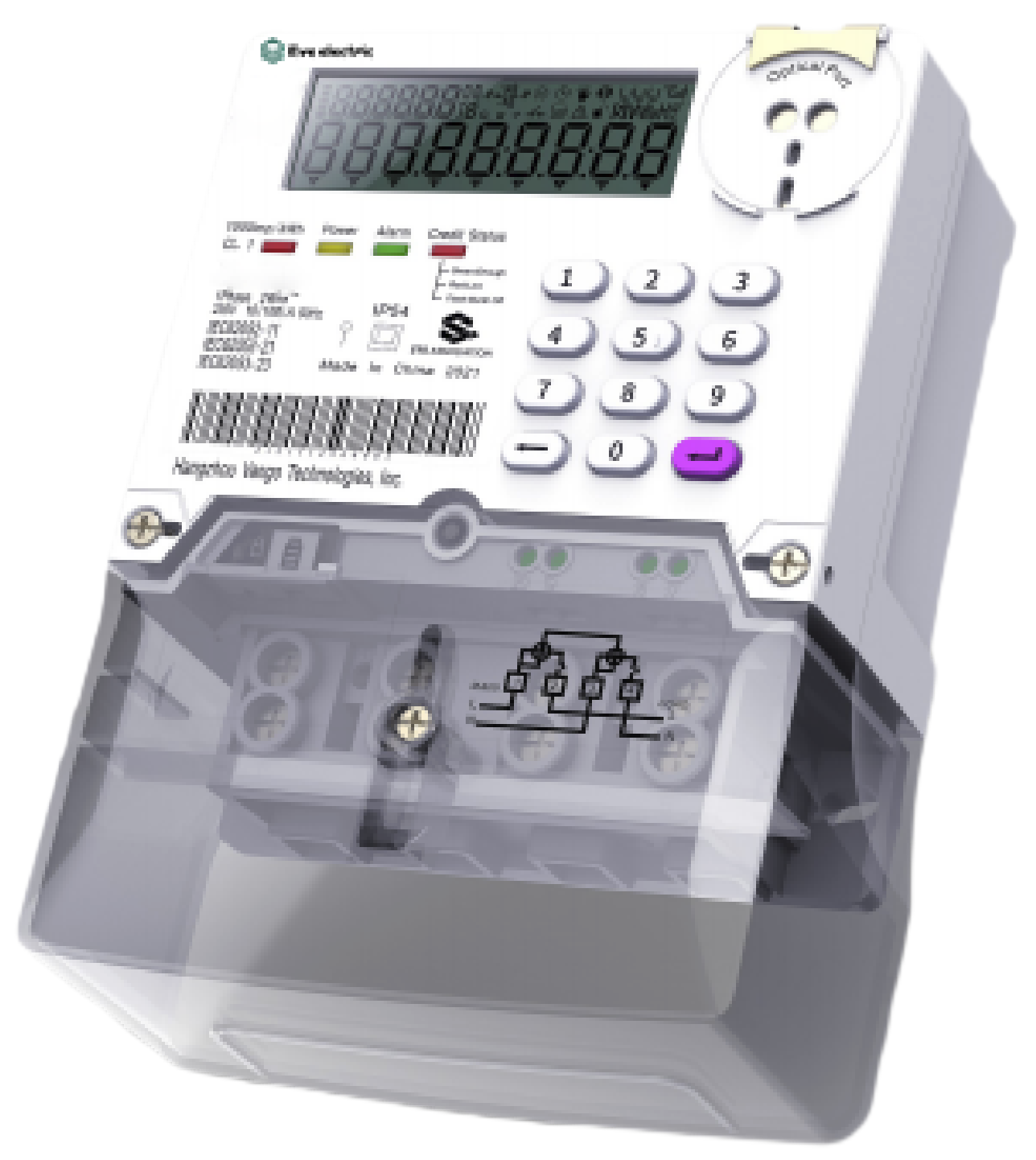

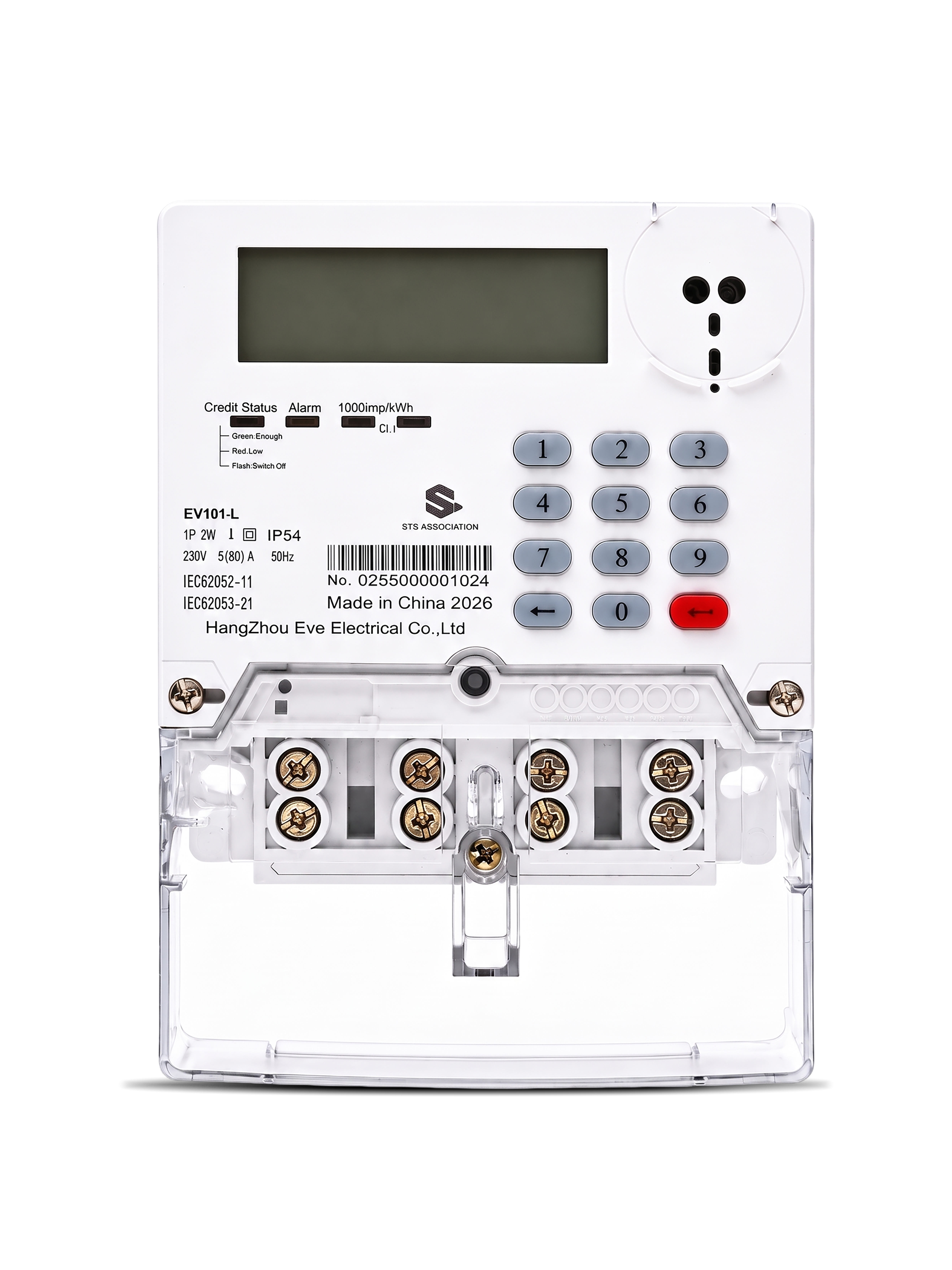

EV101-L is a single phase prepaid meter with keypad which is installed in residential area. It is designed according to STS standard and interoperable with vengding system from other manufacturers. It can meet a variety of customer’s intelligent application requirement.
Highlights：
01 Anti-tamper feature: bypass, magnetic field
02 Smaller size，suitable for variety of installation environment
03 Multiple I/O extensible property
04 Support RF communication for AMR solution
05 Support local firmware upgrade
Specification:
|
Accuracy |
Active |
Class 1 or Class 2(IEC) |
|
Nominal Voltage |
1 phase 2 wire |
220V-240V |
|
Current Range |
lb/ Iref |
5A, 10A |
|
Imax |
40A, 60A, 80A, 100A |
|
|
Starting Current |
According to IEC |
0.4%lb |
|
Frequrncy |
50 / 60Hz, +/-5% |
|
|
Protection Degree |
IP 54 |
|
|
Dimension |
(H x W x D) |
126mm*110mm*51mm |
