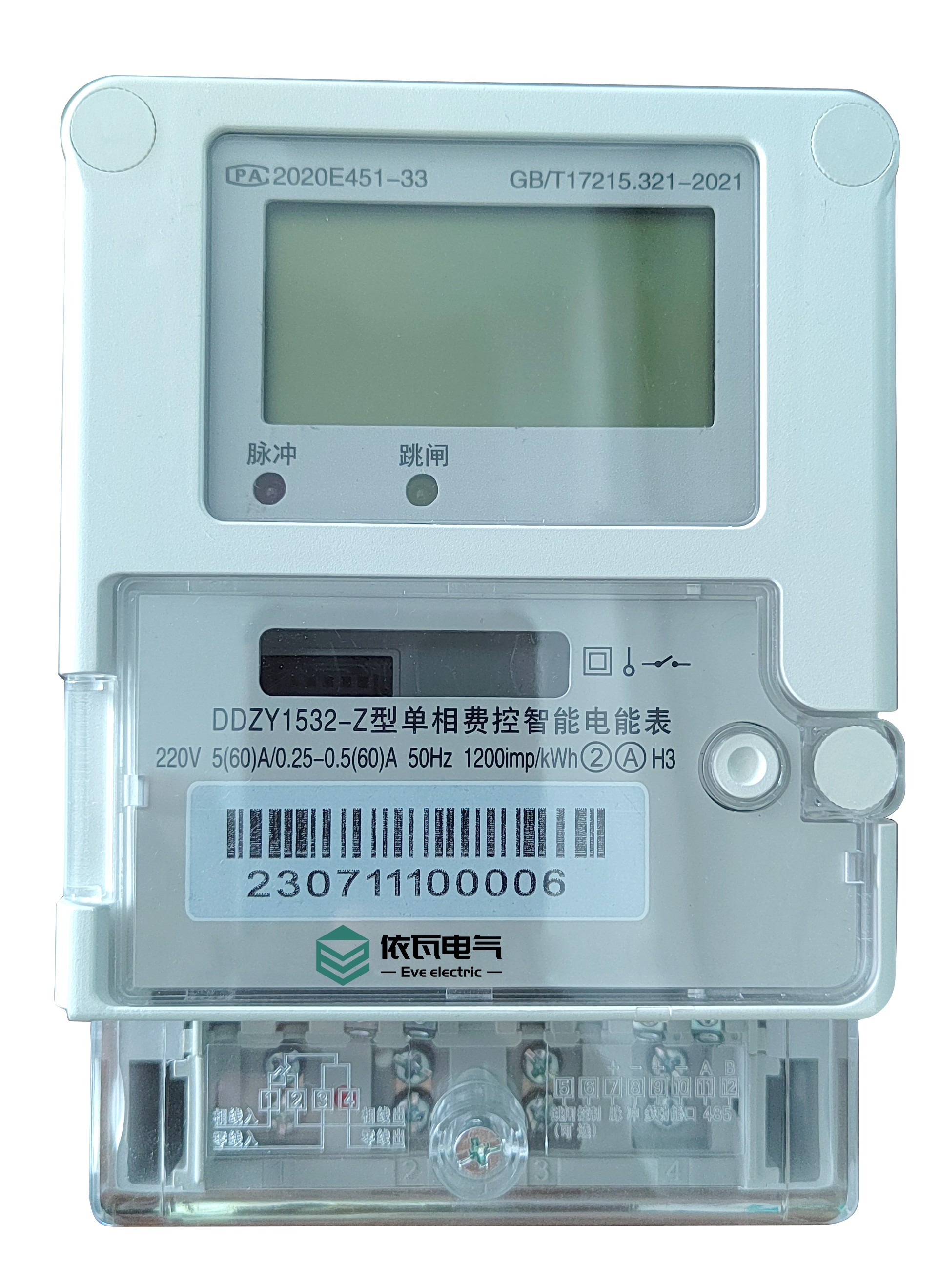

DDZY1532-Z Single-phase fee-controlled smart energy meter

Main functions and features

1. It has forward and reverse metering, and the total, sharp, peak, flat and valley active power. RMS range: -799999.99~79999.99, unit: kWh,
2. Two sets of time zone tables can be switched, and the maximum number of time zones per year is 14, Two sets of timetables (each set can be set with up to 8 daily time tables) can be switched, and the maximum number of daily time periods is 14,
3. It supports four time-sharing rates: peak, peak, flat and valley, It has event records such as Zero loss of pressure events, meter clearing, time calibration, programming, and cover opening；
4. It can record four types of data, such as "voltage, current, frequency", "active power", "power factor", "total active energy", etc,
5. It can measure, record, and display the current voltage, current (including neutral line current), active power, power factor and other operating parameters,
6. The local metering function is mainly realized, and the meter does not store or display the relevant information of electricity charges and electricity prices, and the billing function is mainly completed by the remote electricity sales system,
7. Parameter setting is carried out remotely through RS485, carrier and other communication media,
8. With remote control function, it can remotely pull the switch/allow closing/direct closing, alarm/alarm release, power protection/power protection release and other operations on the electric energy meter.

Main technical parameters

EXTERIOR DIMENSION DRAWING
