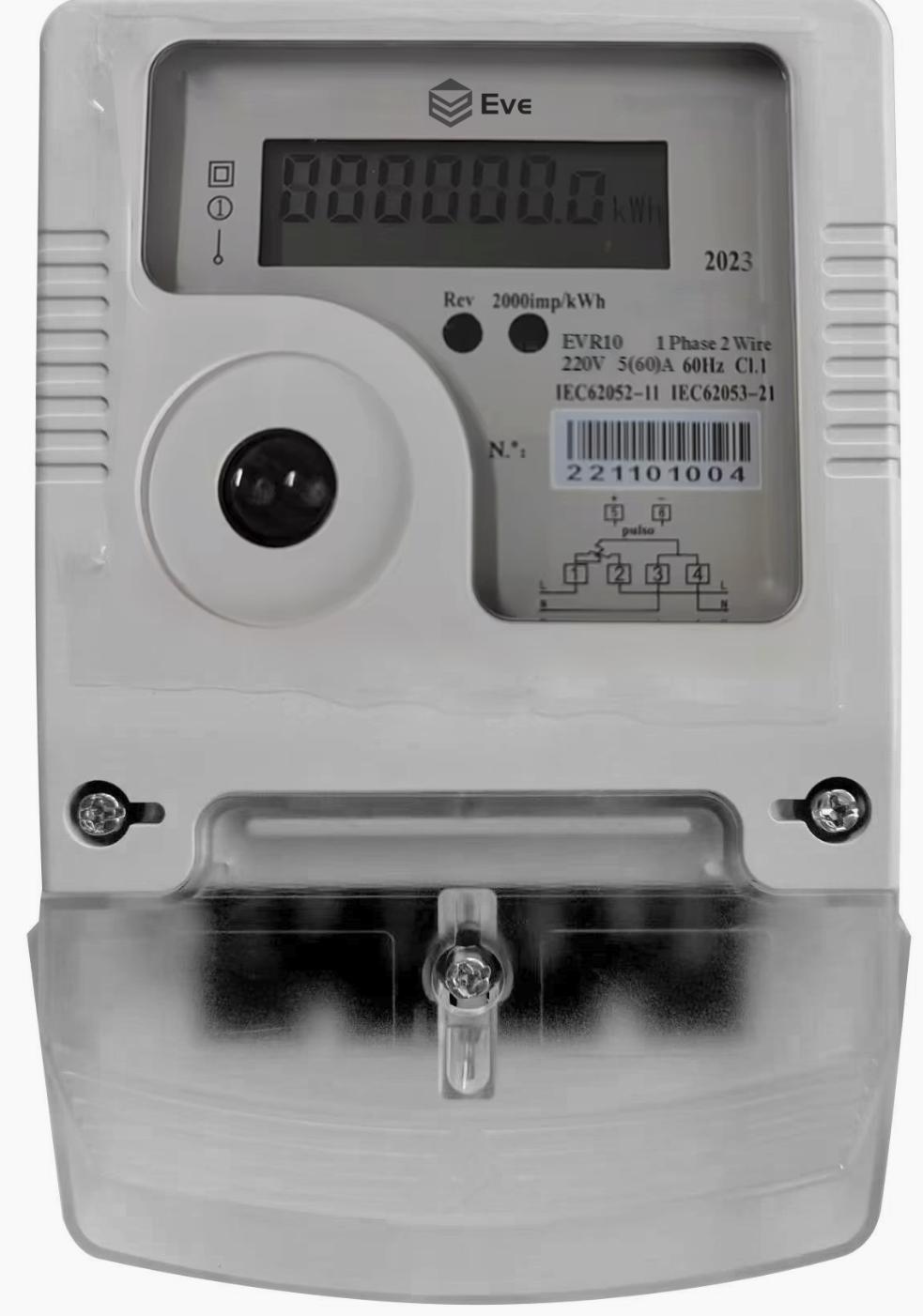

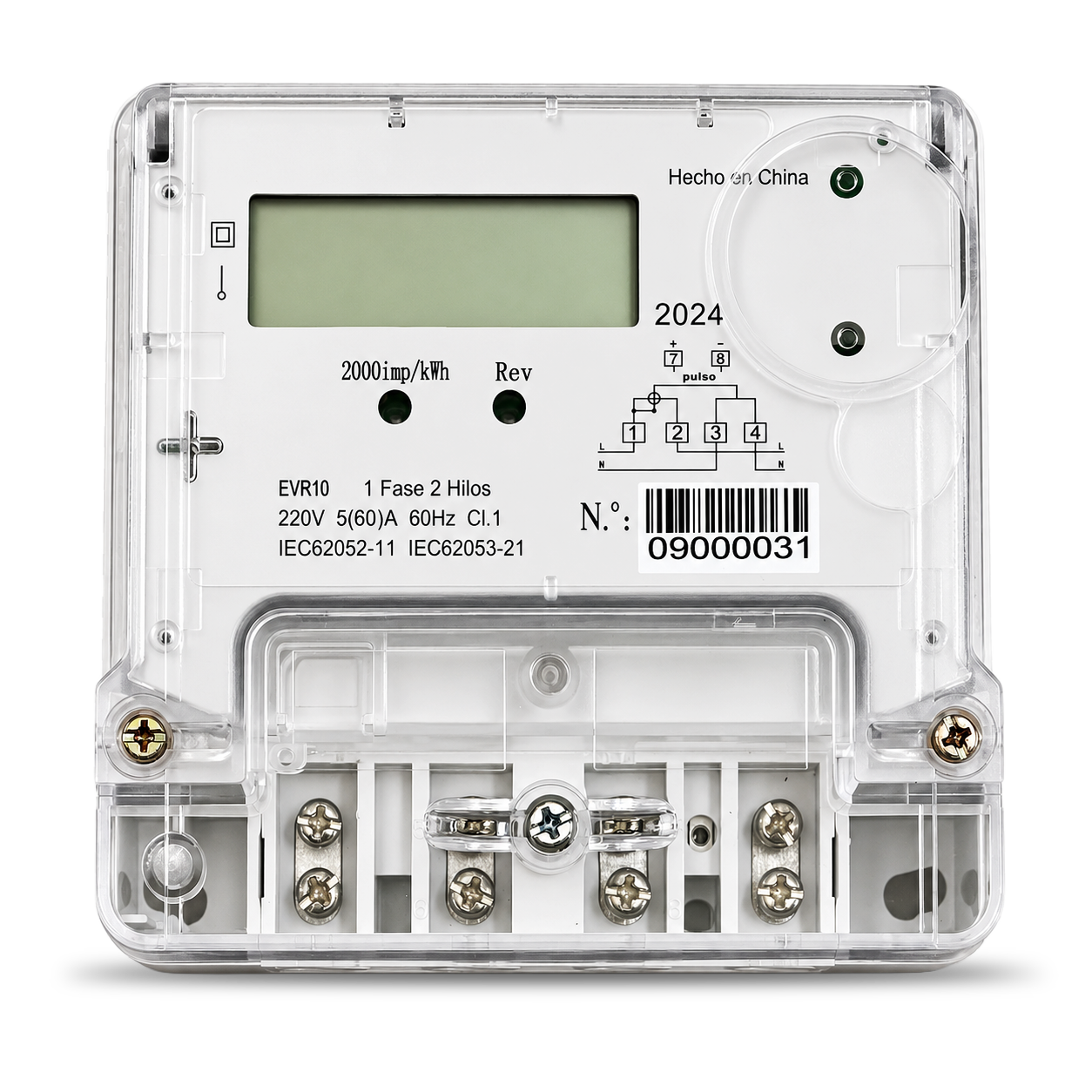

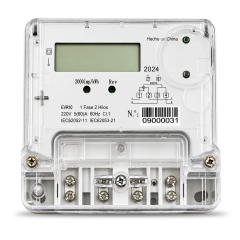

Main Features |
|
|
|
|
|
Measurement |
Display |
|
• 1P2W or 1P3W connection |
• Liquid Crystal Display |
|
• Import & Export kWh • Total & Per tariff(optional) |
• Backlight(optional) • Display without main power |
|
|
Anti-Tamper |
|
Instantaneous Values |
• Ultrasonic welding(optional) |
|
• Power, voltage, Current • Power Factor, Frequency |
• Current reverse • 3 sealing positions |
|
|
• Meter cover and terminal cover removal detection(optional) |
|
RTC (Real Time Clock) |
• Bypass detection(optional) |
|
• Quartz crystal time resource |
|
|
• Gregorian calendar |
Communication |
|
• Super capacitor(24hours) • Unexchangable Lithium Battery(optional) |
• RS485 communication(optional) • Optical communication(IEC62056-21) (optional) |
|
|
|
|
Output |
|
|
• Active energy pulse output(LED) • Electrical pulse output(optional) • Reverse indicator(LED) |
|
|
Main technical parameters |
||
|
APPLICATION |
|
Direct connection |
|
ACCURACY |
Active Reactive |
Class 1 or Class 2(IEC) Class 2(IEC) |
|
NOMINAL VOLTAGE |
1 phase 2 wire |
110V-127V, 220V-240V |
|
CURRENT RANGE |
lb/ Iref |
5A,10A |
|
|
Imax |
40A, 60A, 80A, 100 A |
|
STARTING CURRENT |
According to IEC |
0.4%lb |
|
FREQURNCY |
|
50/60Hz, +/-5% |
|
POWER CONSUMPTION |
Voltage circuit |
< 2W, < 10VA |
|
|
Current circuit |
<4VA |
|
TEMPERATURE RANGE |
Operation |
- 25 ° C to +55° C |
|
|
Storage |
- 40 ° C to +70 ° C |
|
HUMIDITY RANGE |
|
Up to 95% |
|
PROTECTION DEGREE |
|
IP 54 |
|
EMC |
Electrostatic discharge |
Contact discharge 8KV |
|
|
|
Air discharge 15KV |
|
|
Fast transient burst |
4KV |
|
INSULATING STRENGTH |
AC voltage |
4KV |
|
STANDARDS |
IEC standard |
IEC62052-11 IEC62053-21 |
|
|
|
IEC62053-23 |
|
DIMENSION |
(H x W x D) |
168mmx 117mmx 53mm |
n Typical Dimensions
n Terminal drawing
n Connection Diagram
Symmetric
Asymmetric
