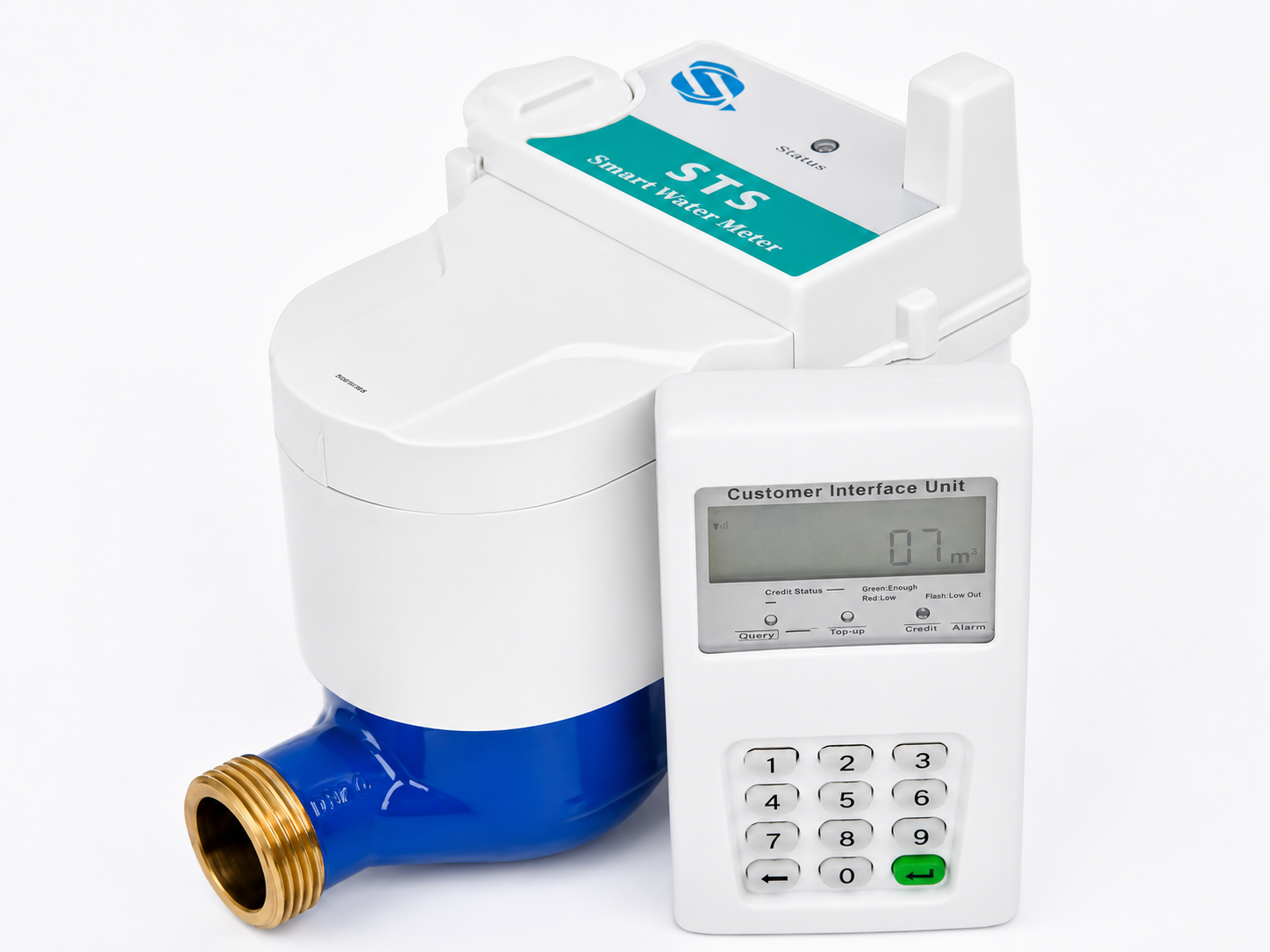

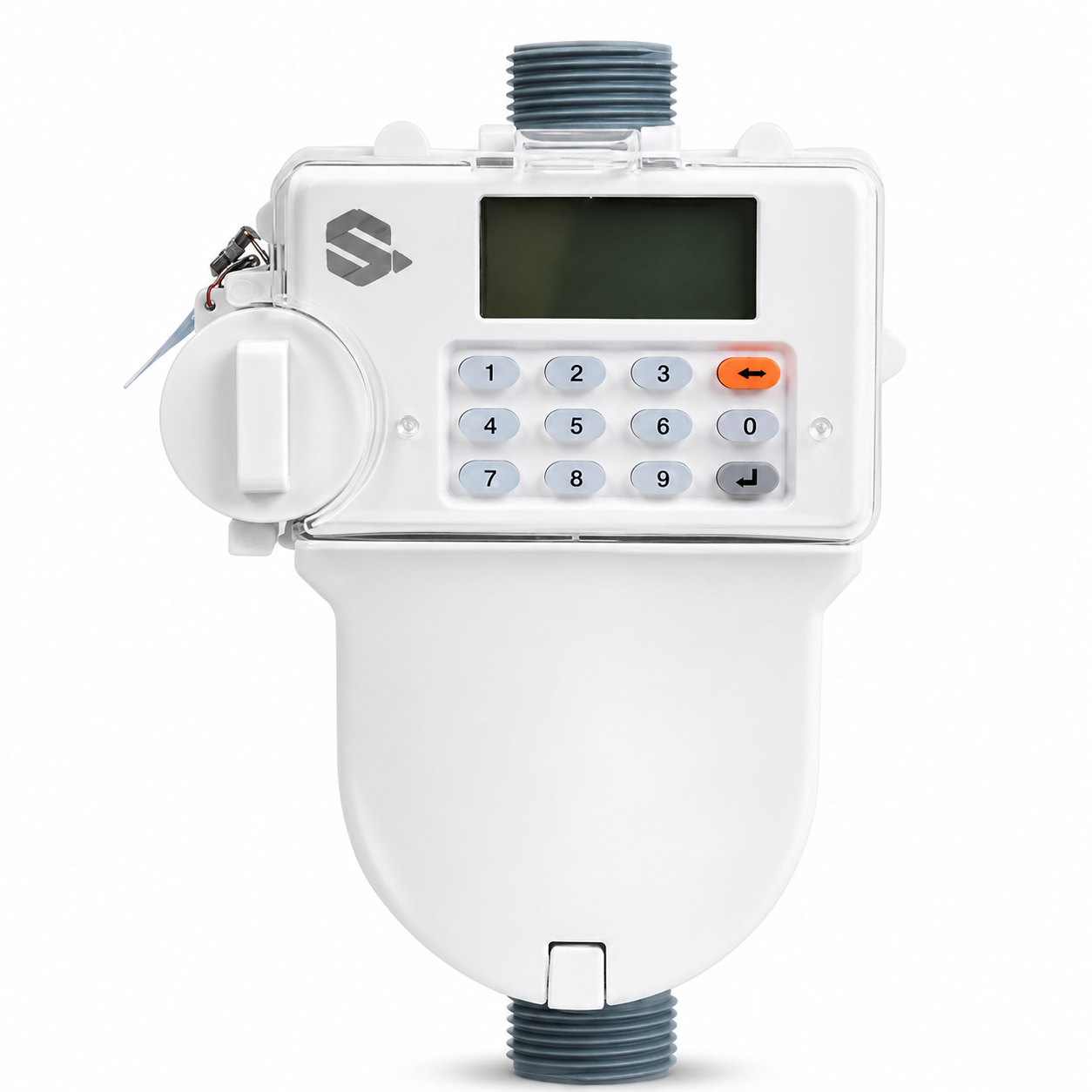

The water meter can transfer 20-digit Token to the water meter terminal through wireless or keypad to realize water recharging. It realizes the change from the original staff's door-to-door meter reading and charging to the user's automatic payment, and puts anend to the phenomenon of malicious delinquency in water charges.
Highlights：
01 Meets the requirements of STS standard with high encryption level
02 Adopts electromechanical separation mechanism design
03 Independent battery compartment, easy to replace the battery
04 Adopts high-capacity battery, the service life can reach more than 10 years
05 All-in-one LORA-RF communication (optional)
06 Anti-magnetic, anti-interference, low voltage alarm
07 Balance alarm to prevent underpayment
Specification:
|
Module power supply |
DC3.2V-3.7V |
|
Whole power consumption |
≤15uA |
|
Waterproof class |
Split type (IP68), Integrated type (IP65) |
|
Environmental class |
Class B |
|
Electromagnetic environment |
E1 |
|
Measurement class |
Class 2 |
|
Temperature class |
T50 |
|
Sensitivity grade |
U10/D5 |
|
Meter body material |
Brass/Nylon |
|
Conformity standard |
ISO4064-2014 |
|
Display value error range |
The maximum allowable error of high area flow (Q2≤Q≤Q4),±2% when the water temperature range is 0.1°C~30°C. If the water temperature is higher than 30°C,it is±3%. Low zone flow (Q1≤Q |
