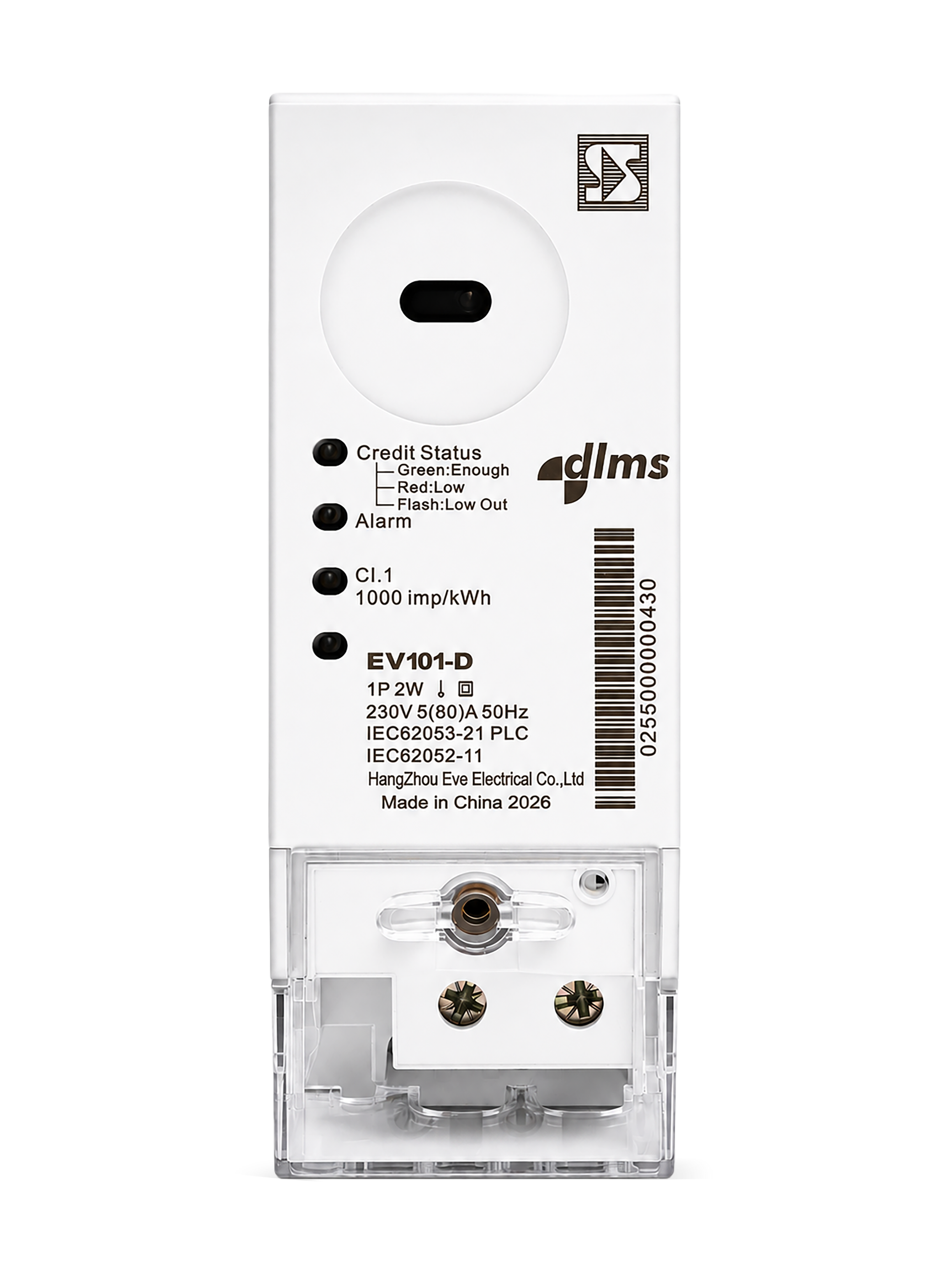

The EV101-D is a DIN rail prepayment meter with modular design and flexible extensible property, which is designed according to the latest STS standards. It can meet a variety of intelligent application requirement.
Highlights：
01 New strong anti-tamper feature （bypass and ultrasonic sealing）
02 Better environment protection IP54
03 Double internal relay to disconnect both phase and neutral
04 Support DLMS/COSEM open protocol, easy to integrate into third part system
05 Support plug-in PLC/RF technology
Specification:
|
Accuracy |
Active |
Class 1 (IEC) |
|
Reactive(optional) |
Class 2 (IEC) |
|
|
Nominal Voltage |
1 phase 2 wire |
220V…240V (-20%...20%) |
|
Current Range |
lb/ Iref |
5A, 10A |
|
Imax |
80A, 100A |
|
|
Starting Current |
According to IEC |
0.4%lb |
|
Frequrncy |
50 / 60Hz, +/-5% |
|
|
Protection Degree |
IP 54 |
